dé Portable EV Charger 15A & 10A Plug

dé Portable EV Charger 15A & 10A Plug

Regular price $180.00 AUD
Regular price Sale price $180.00 AUD
Sale Sold out
Shipping calculated at checkout.
Size
View full details

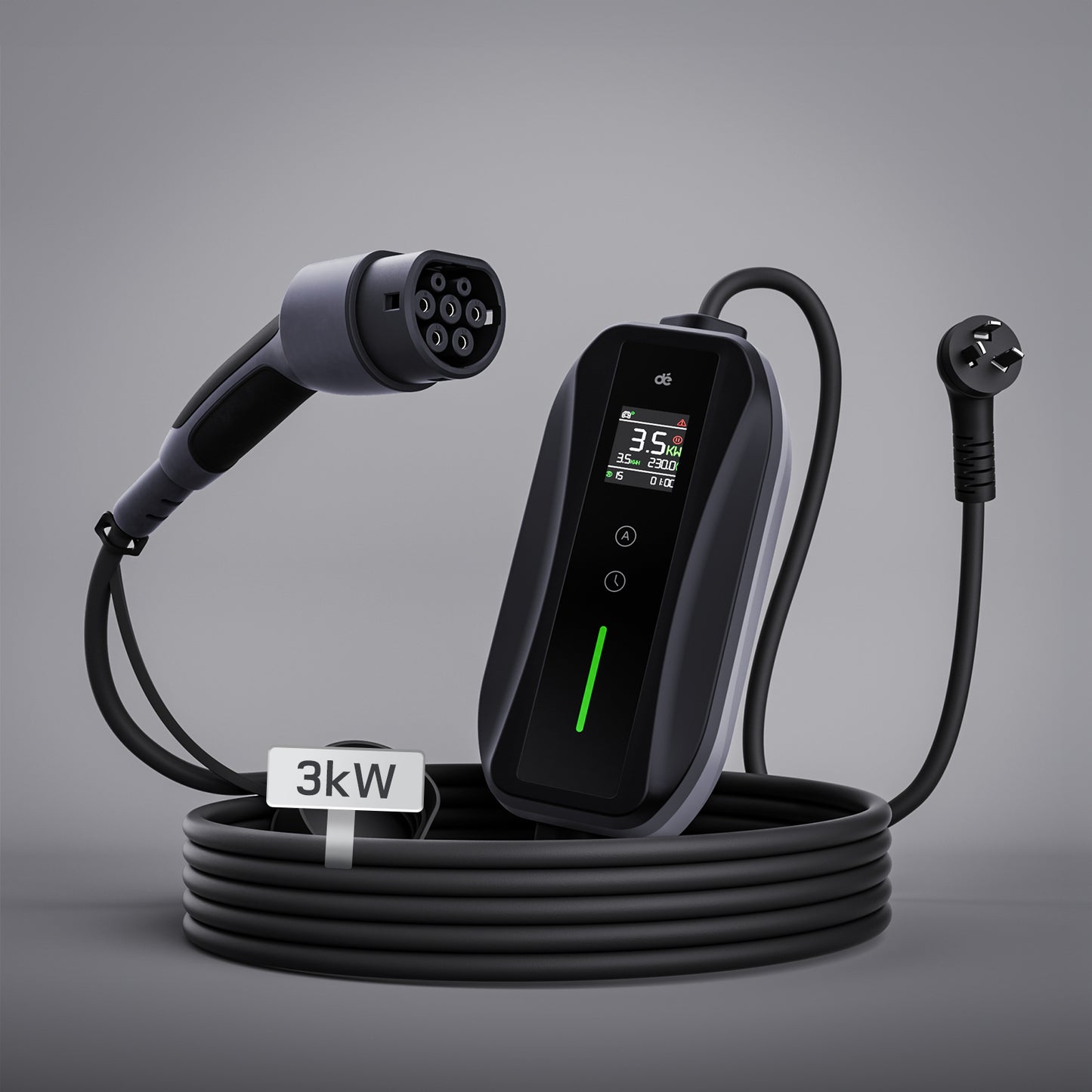

dé Portable EV Charger 10A & 15A Plug

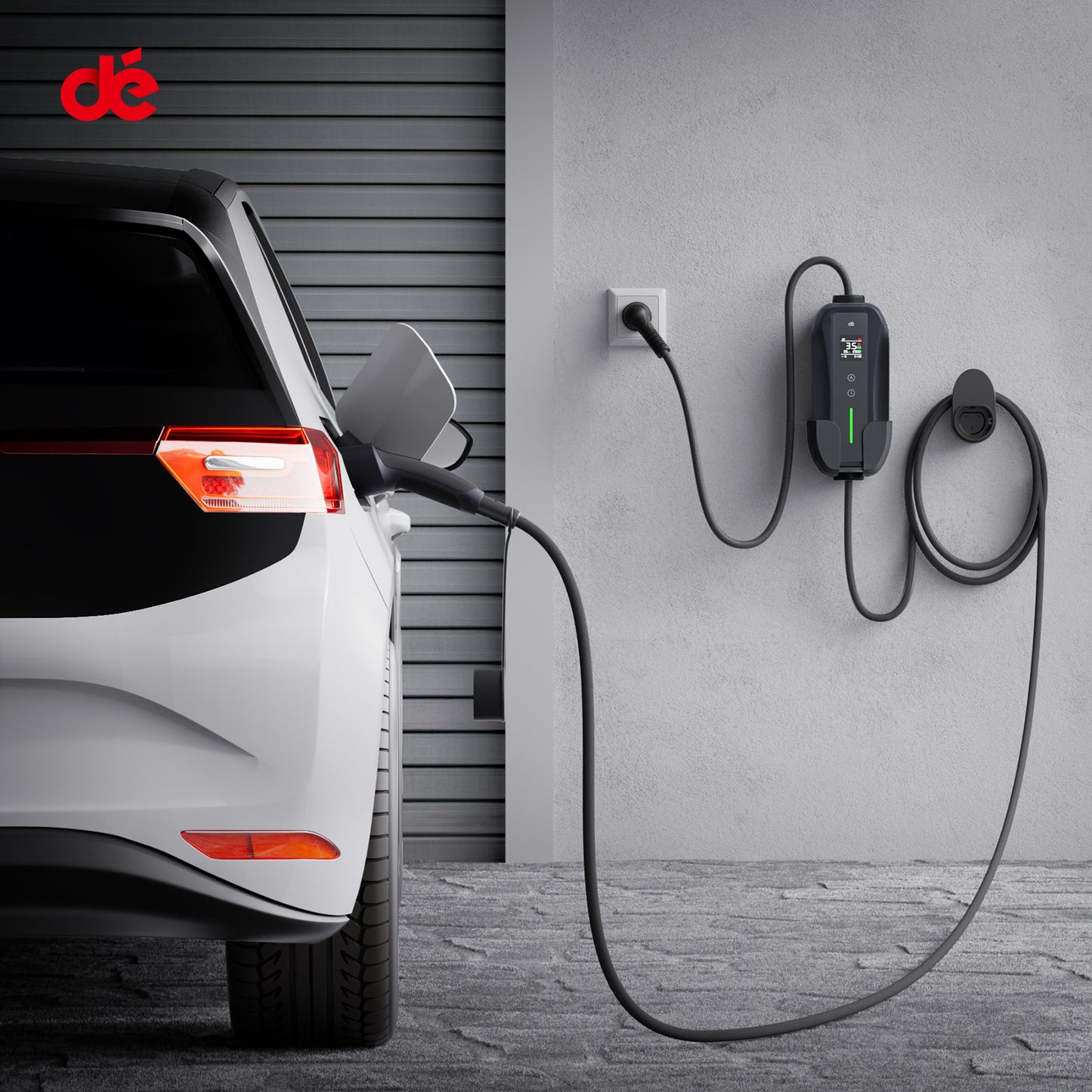

The dé Portable EV Charger 10A & 15A Plug has a maximum charging power of 3.5kW. The charger is both portable and wall-mounted, suitable for indoor and outdoor use, and can efficiently charge electric vehicles and plug-in hybrid vehicles. Whether mobile charging or fixed installation, it can meet different requirements. It can be connected directly to an existing 10A or 15A single-phase socket, enabling plug-and-play charging and easy use.

Wallbox Image

Flexible and Easy to use

Plug and play, no location restrictions
Only a 10A / 15A socket for charging at any time

Lightweight and Portable

Compact and Foldable packaging
Saves space and doesn't lie around in the car

1.5x Super-fast Charging

1.5x faster than the original charger
Charge from 0% to 100% in 3-5 hours

Designed down to the smallest detail

Wallbox Image

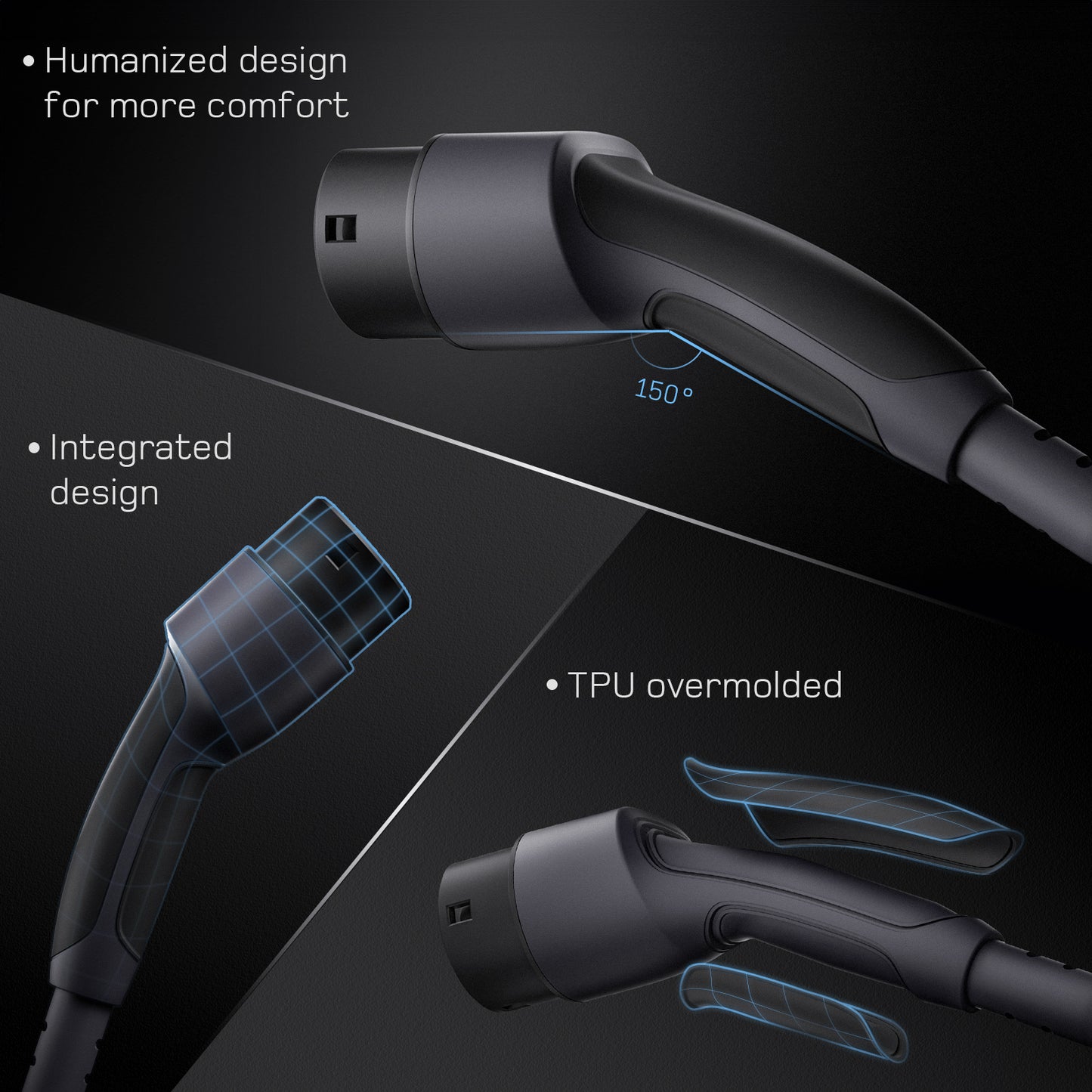

  • Conforms to the hand line, easy to hold, the outer line is natural and smooth, no visible screw holes.
  • The handgrip is wrapped with TPU, so it is not cold to hold in winter.
  • The rear clip can be fixed with a buckle, which is stable and reliable.
  • The LCD screen displays the charging status and power at any time.
  • The frosted cable is non-slip and wear-resistant, and is of high quality.
  • 6A-15A Adjustable

    The current is adjustable from 6A/8A/10A/13A/15A to suit different charging requirements and environments.

  • 0.5h-8h Delayed Charging

    Automatically start and stop charging to avoid peak times.

1 of 2
Slide 2

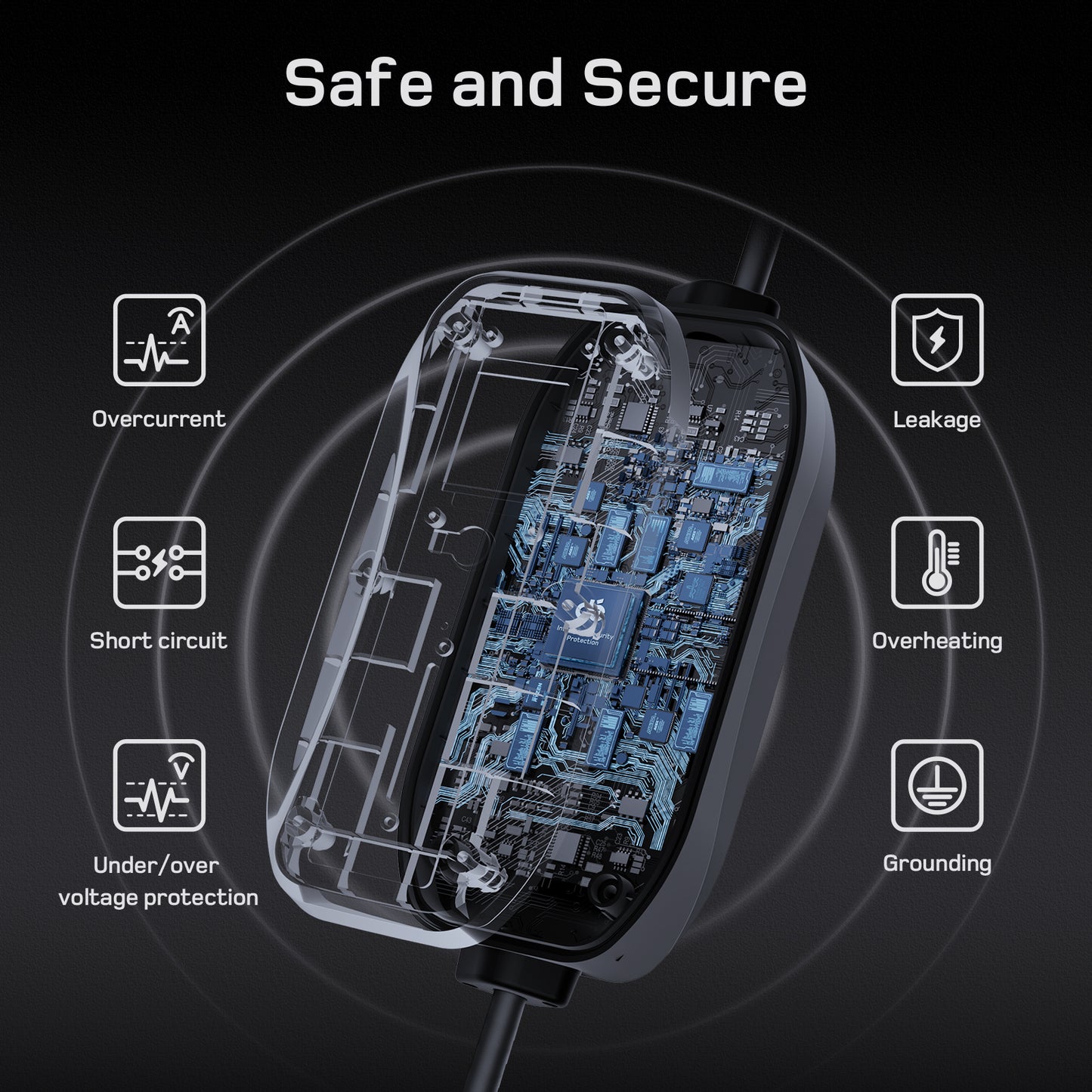

Comprehensive protection for your safety

Our chargers are equipped with over-current, under-voltage/over-voltage, leakage current, over-temperature, ground fault and short-circuit protection settings.

Slide 3

Operating temperature range: -25°C to 50°C

Waterproof, dustproof, heat-resistant and cold-resistant.
Reliable in rain, heat and frost - durable and safe.

Easy to Operate

  • Press the current button to set the current
  • Press the current button for 3s to choose "No Grounding"
  • Press the timer button to set the time and hold for 3s to reset
  • Press both buttons for 3s to be on standby

Specification

Parameter Details
Maximum Charging Power 3.5 kW (15 A 1-phase)
Charging status Single-phase charging power up to 3.5kW
Current range 6A/8A/10A/13A/15A
Plug Power connection: 10A/15A Plug (1-phase)
Vehicle connection: Type 2
Operating Temperature -25℃ to +50℃
Time Range 0.5h-8h
Protection Settings Leakage, Overcurrent, Over/Undervoltage, Grounding, Overheating, and Short Circuit Protection, Waterproof, Dustproof
Waterproof Grade IP65 (Control Box)
IP54 (Type 2 Plug Coupling)
Warranty 3 Years
Nominal Voltage 230-400V AC
Charging Method Single-phase
Ampere and Status Display Readable via LED Screen
Charging Settings Controlled via two buttons
Installation Location Indoors and Outdoors
Size 6m: 32*32*11.3 cm
8m: 32*32*11.3 cm
10m: 32*32*11.3 cm
15m: 36*33*14 cm
Weight 6m: 3.24 kg
8m: 3.5 kg
10m: 3.81 kgbr/>15m: 4.71 kg

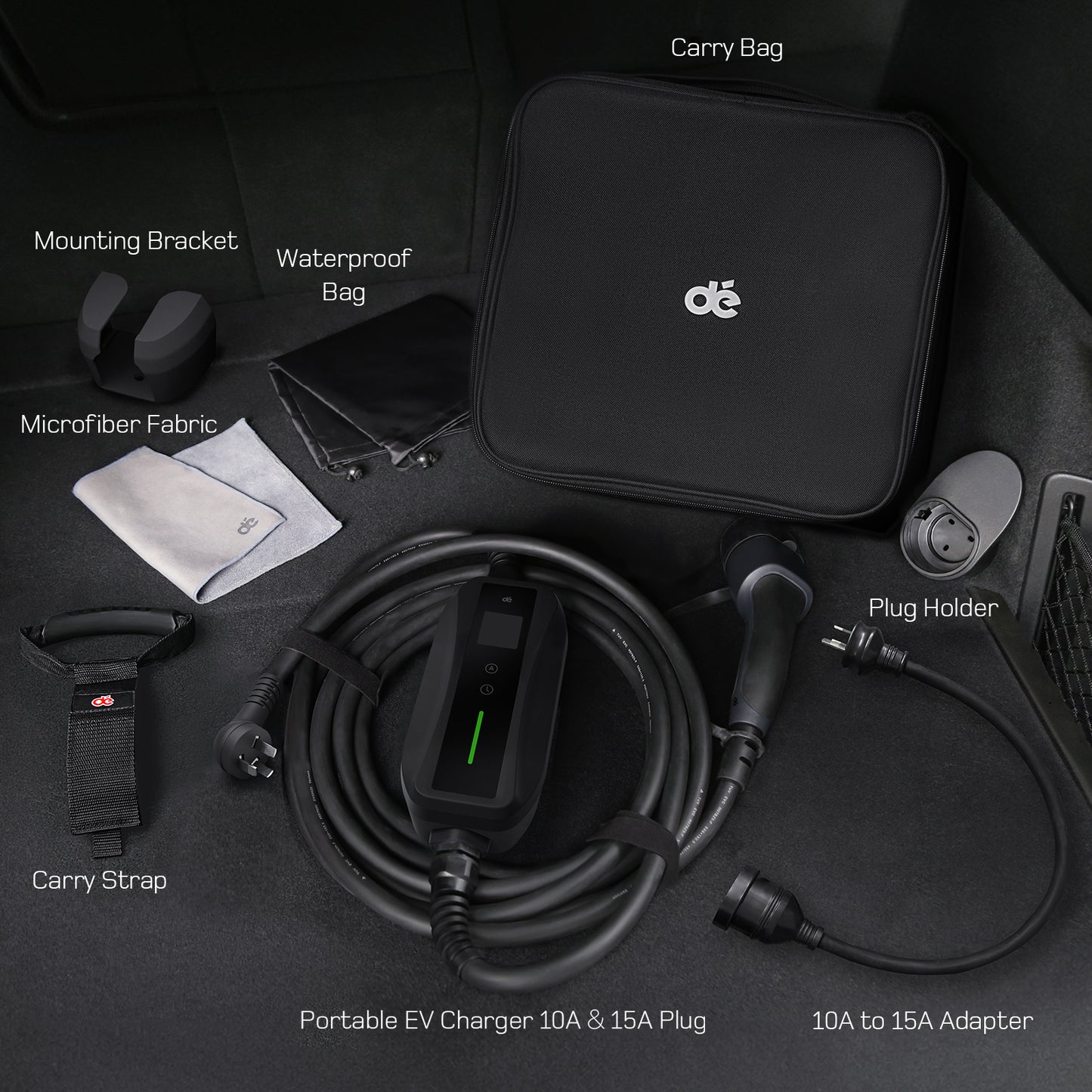

Package List Mode 2 EV Charger, Handbag, Waterproof Bag, Microfiber Cloth, Back Clip, Shoulder Strap, Plug Holder

In the Box

Wallbox Image

FAQs

What is the order of connecting the charger?

  • Step 1: Plug into an electrical outlet
  • Step 2: Set the current and delay time.
  • Step 3: Plug the Type 2 plug into the vehicle charging outlet.

NOTE: Please set the current and time before step 3. Once the Type 2 plug is inserted into the vehicle, it cannot be changed.

Can the charger be used without grounding in the event of a ground fault?

Our chargers have no-grounding mode. In the event of a temporary ground fault, you can switch to no-grounding mode for emergency operation according to the operating instructions.

What should I do if I receive an error code while charging with the charger?

The charger is equipped with a safety protection device that will report an error if there is a potential safety risk.

Error Code:
#1 - Leakage problem
#2 - Overvoltage problem
#3 - Grounding problem

You can perform a proper inspection or contact our service team to troubleshoot the problem.

Why does the actual charging power not reach 3.5 kW?

The current value on the charger is set to an upper limit. The actual charging speed depends on the power supply, the charger and the vehicle itself. Some vehicles may have a power limit. Normally a power loss of 0.5-1 kW is normal.

Can I charge in the rain?

Our products are waterproof (IP65 for the control housing and IP54 for the Type 2 plug). However, to avoid unnecessary malfunctions, we recommend that you do not use the product in heavy rain or immerse it in water for long periods of time. If necessary, you can protect the product with the waterproof bag we provide.
