dé EV Wallbox 7kW
dé EV Wallbox 7kW
Couldn't load pickup availability

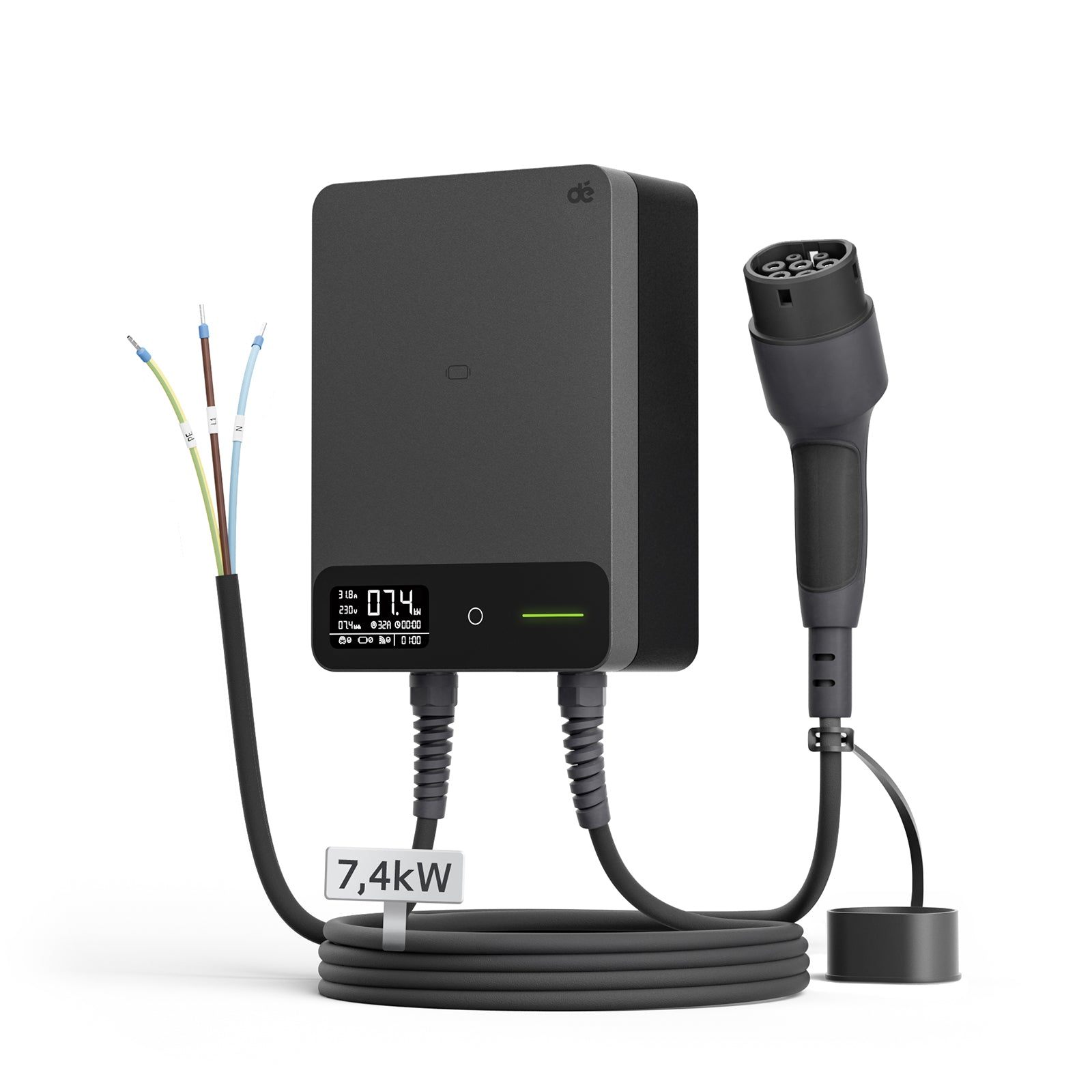

dé EV Wallbox 7kW

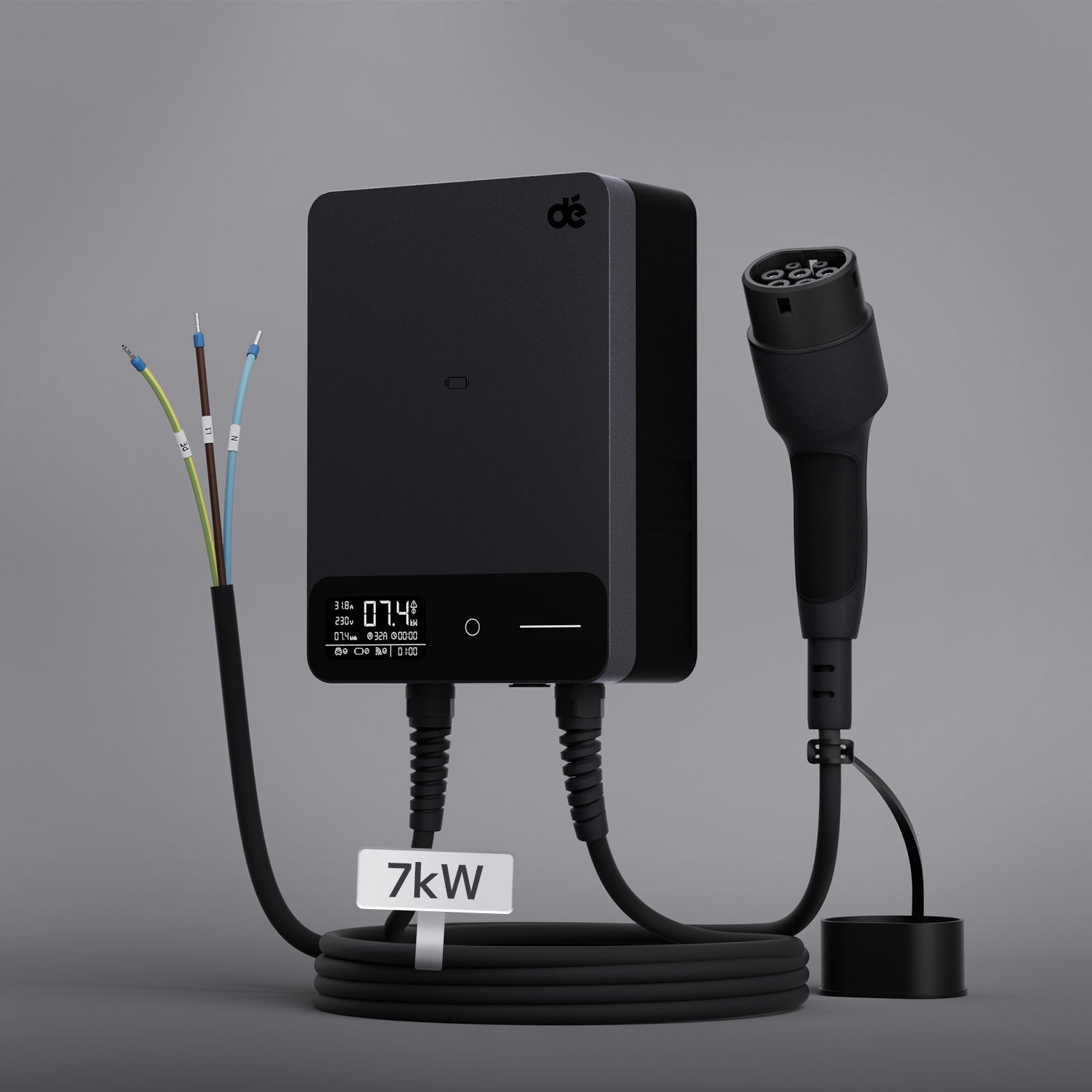

de EV Wallbox 7kW is a smart Wallbox that can be connected via Wi-Fi. You can check and adjust the state of charge at any time via the app. Equipped with a type B differential circuit breaker to guarantee the safety of your charge. Either plug and play via CEE plug, or directly into the distribution box.

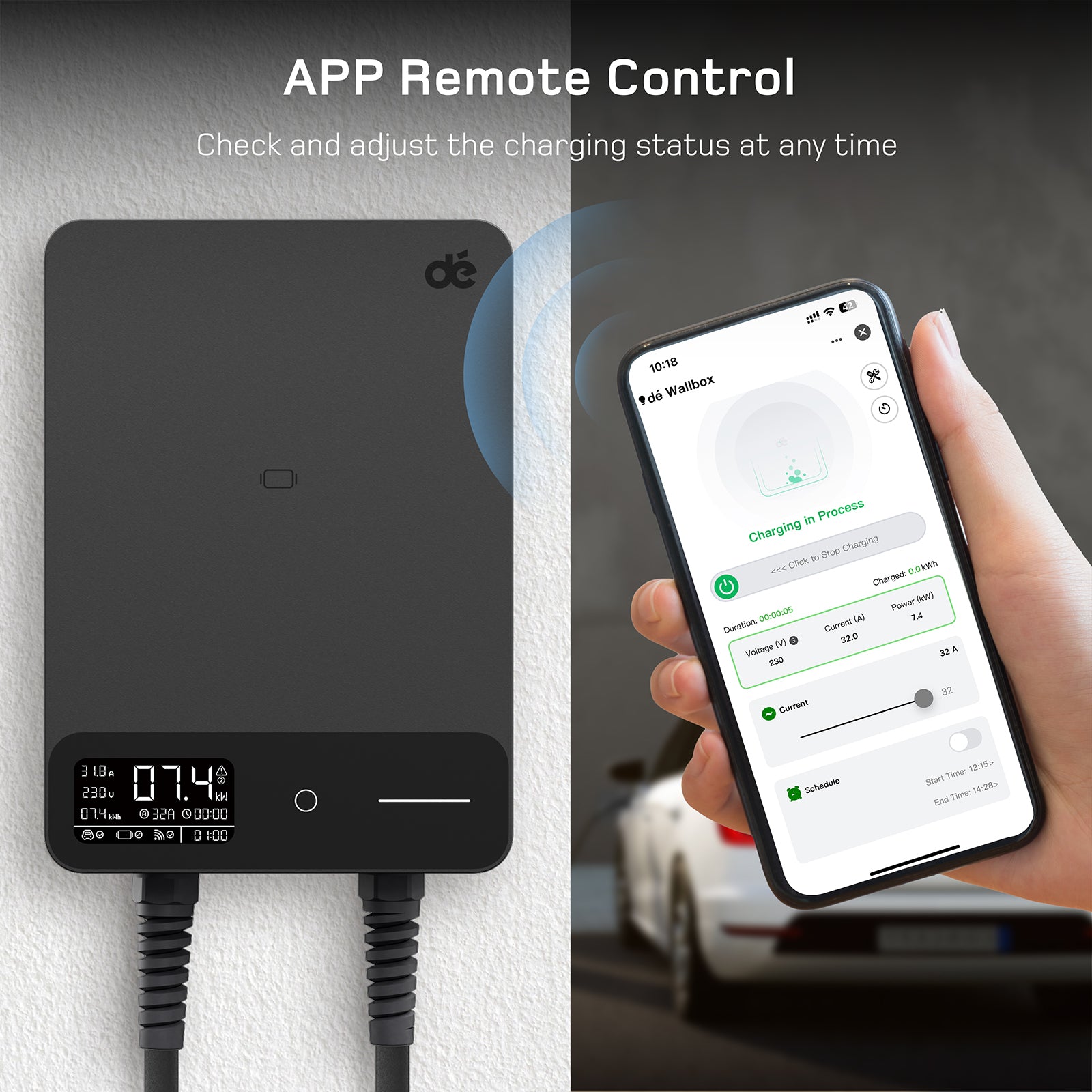

APP remote control
The new APP function enables smart charging via Wi-Fi. You can configure the charging process without leaving the room, start and stop the charging process at any time, or adjust the charging current and time.
Control by Wallbox
All charging settings can be made directly on the Wallbox at the touch of a button.
Control by car
Configure the charging process directly from the car, and operate and display the charging status through a more familiar and user-friendly on-board system.
After downloading the app to register and add the device, connect the device and connect to Wi-Fi.
Press twice to set Wi-Fi;
Press and hold in standby mode to set the delay time;
Press and hold in charging mode to stop charging;
Card induction for 10s activates RFID.
Make sure your mobile device (cell phone, tablet, etc.) is connected to a secure 2.4 GHz network and that Bluetooth is enabled.
Make sure the device is within Wi-Fi range.
After downloading the app to register and add the device, connect the device and connect to Wi-Fi.
Press once to set the current;
Press twice to set Wi-Fi;
Press and hold in standby mode to set the delay time;
Press and hold in charging mode to stop charging;
Card induction for 10s activates RFID.
Claim your reward!
Your reward!
Copy the coupon code & use it at checkout

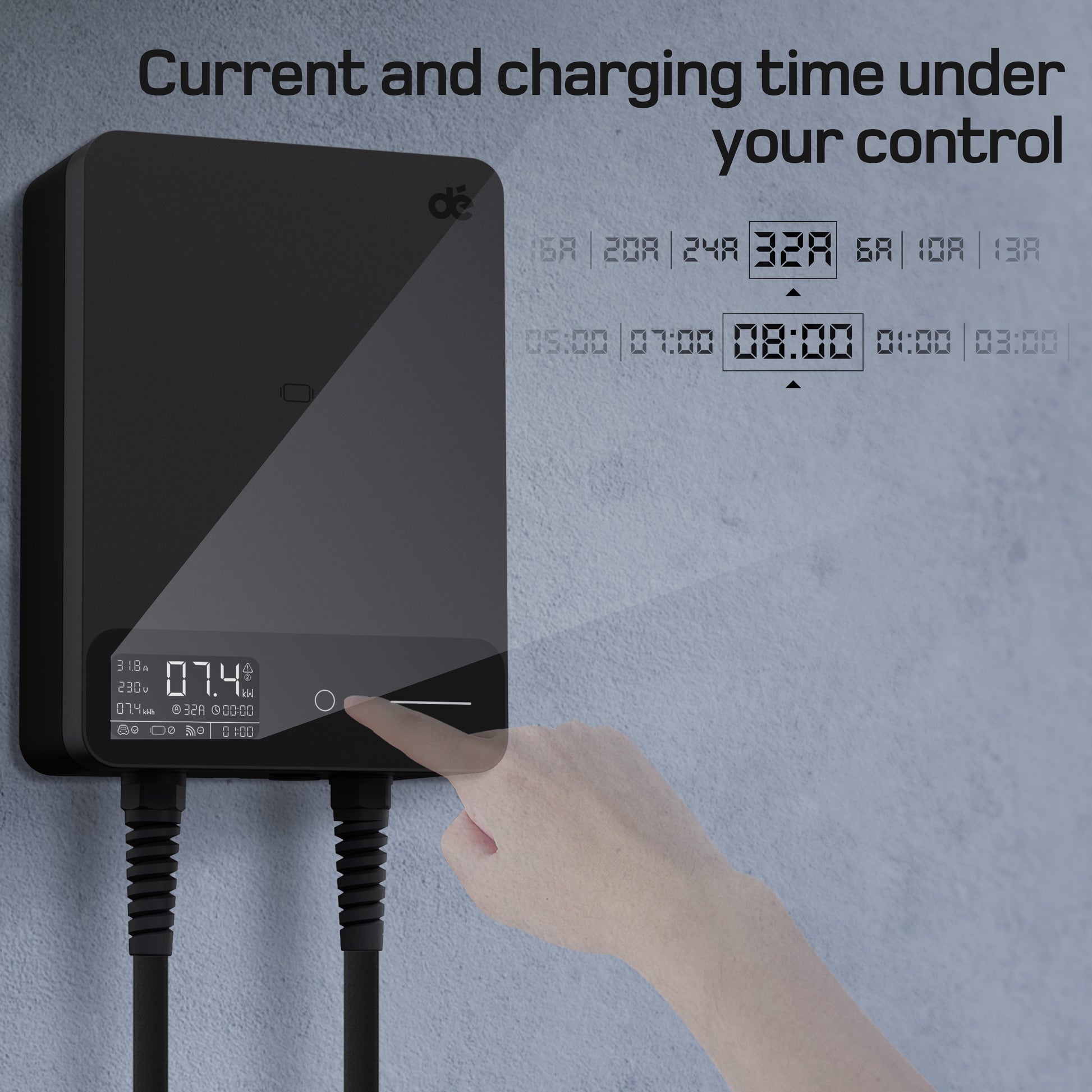

Free control of loading speed and time
-
6A-32A adjustable
Current can be set between 6A/10A/13A/16A/20A/24A/32A to suit different load requirements and environments.
-
0.5h-8h timer function
Automatic start and stop of the loading process, avoiding peak times

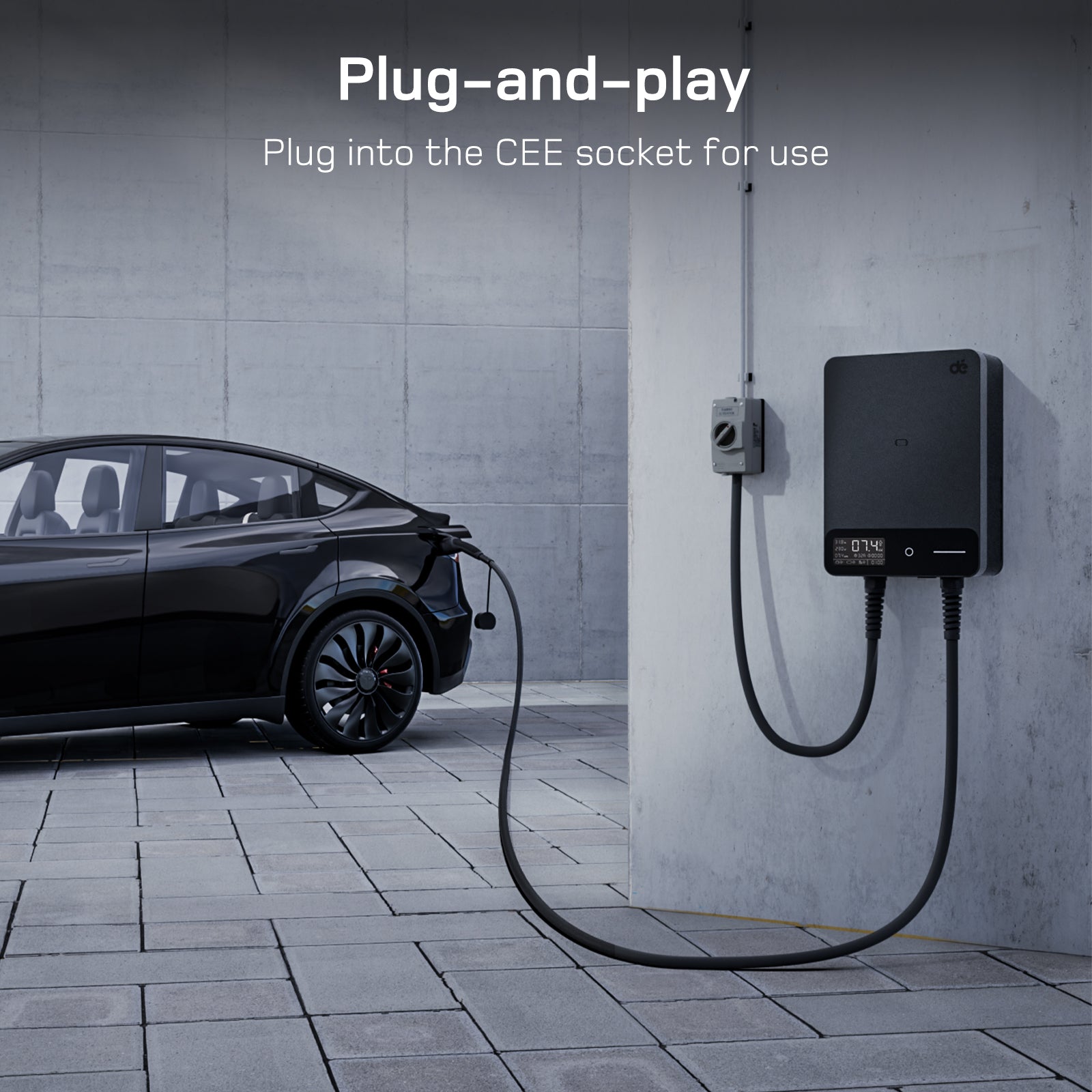

Plug-and-Play

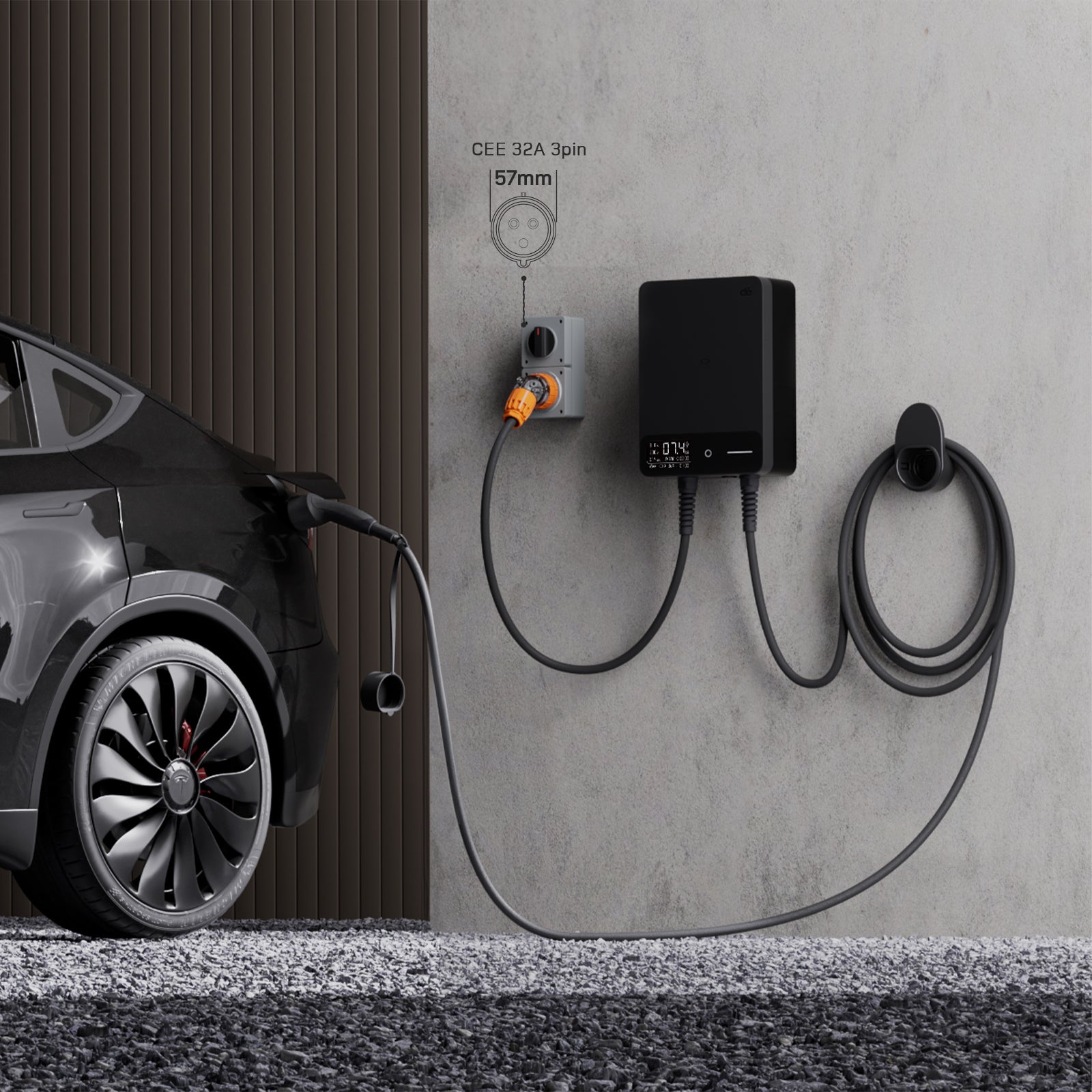

Install the included CEE plug to plug directly into the outlet

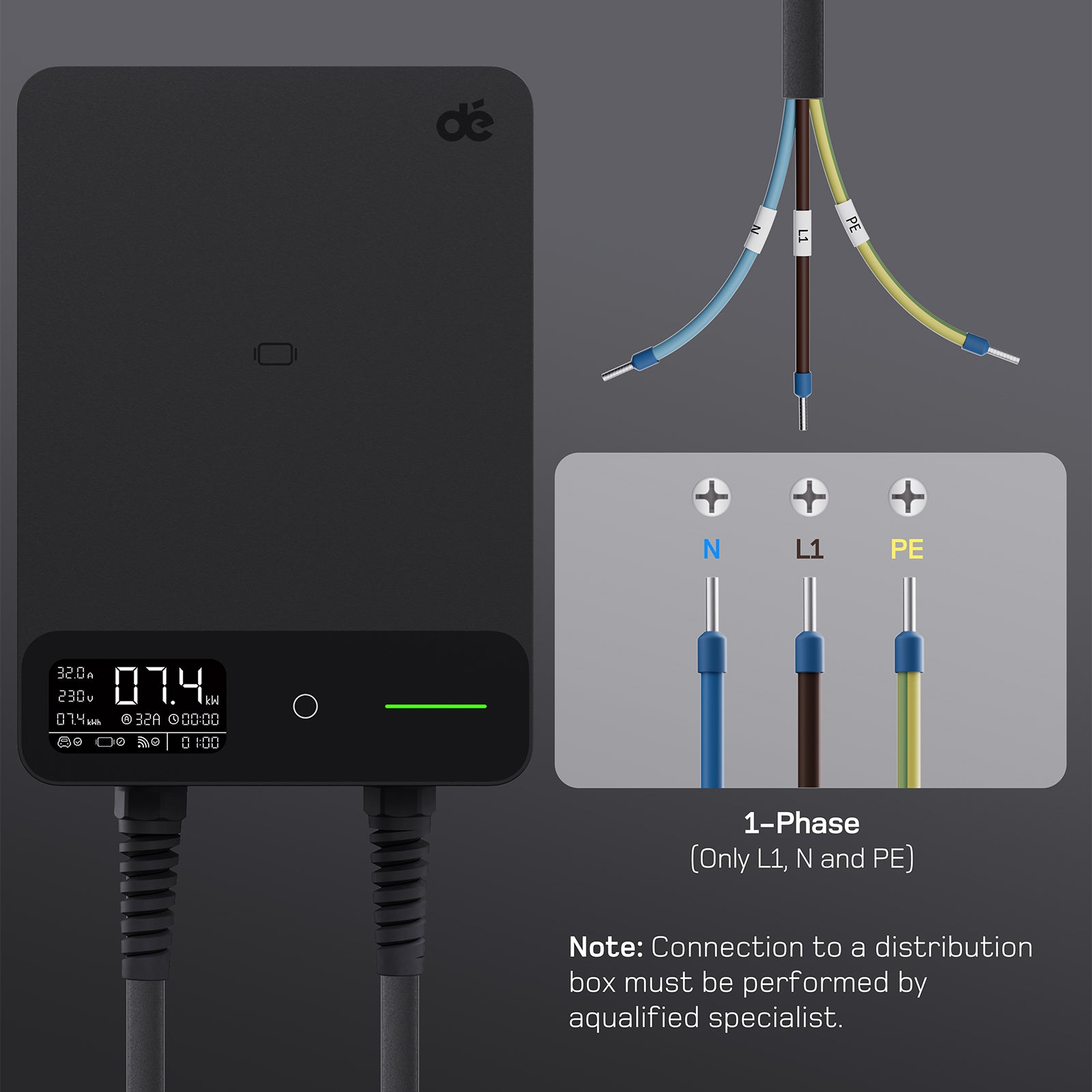

Fixed installation
Fixed mounting on distribution box
Easy fixing
The back panel can be fastened to the wall with a single click for a secure and reliable fixing.

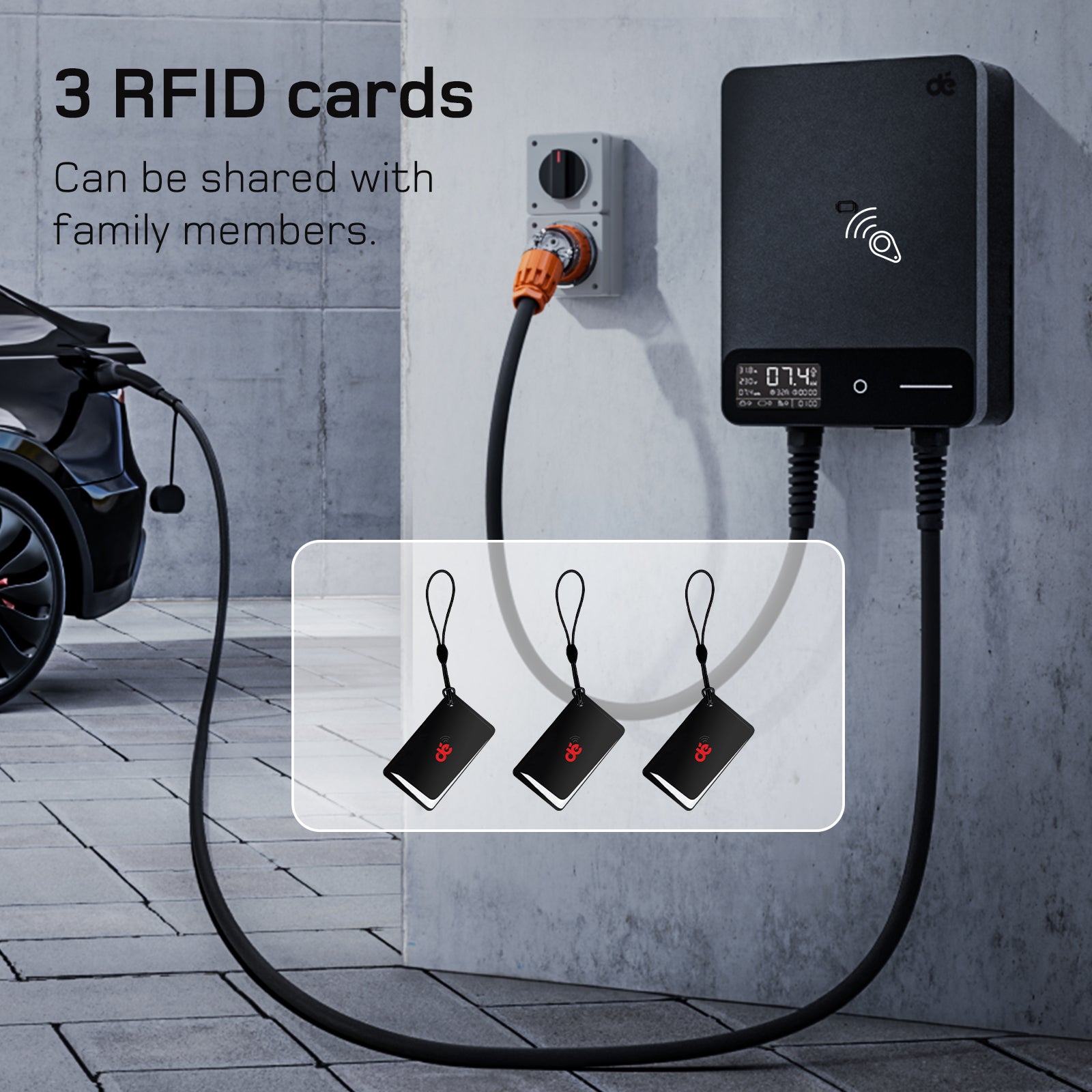

Family-friendly packaging
Equipped with 3 RFID cards, it enables personalized access and protection for multiple users. Can be shared with family members or as a daily backup.

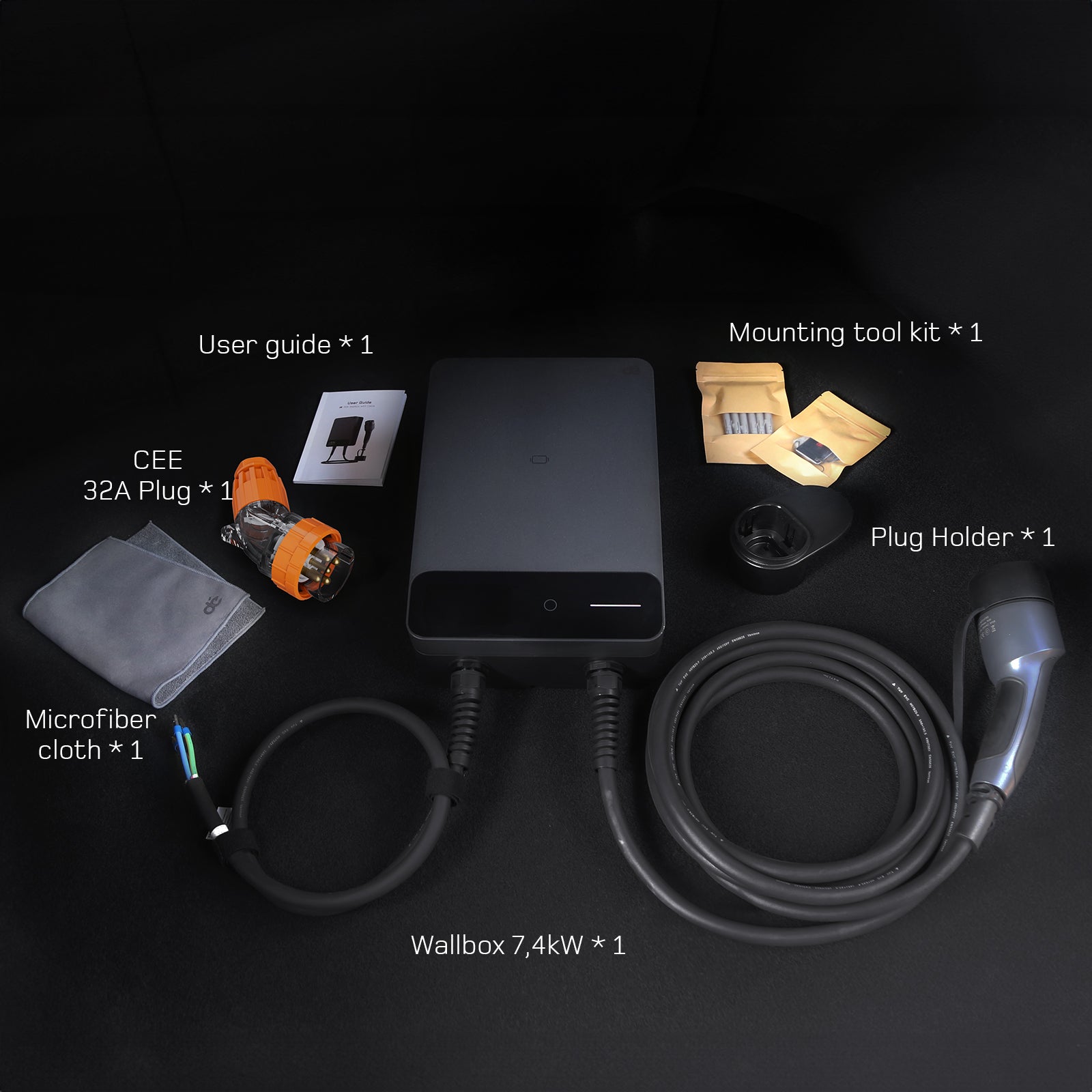

In the Box
- Wallbox 7kW * 1
- CEE 32A Plug * 1
- Mounting Kit* 1, including back plate and screws
- RFID cards * 3
- Plug holder * 1
- Microfiber Cloth * 1
- User Guide * 1
Specification
| Parameter | Details |
|---|---|
| Maximum Charging Power | 7 kW (32 A 1-phase) |
| Charging status | Single-phase 16A charging power up to 3.5kW Single-phase 32A charging power up to 7kW |
| Current range | 6A/10A/13A/16A/20A/24A/32A |
| Plug | Power connection: CEE Plug (3Pin) Vehicle connection: Type 2 |
| Operating Temperature | -25℃ to +55℃ |
| Time Range | 0.5h-8h |

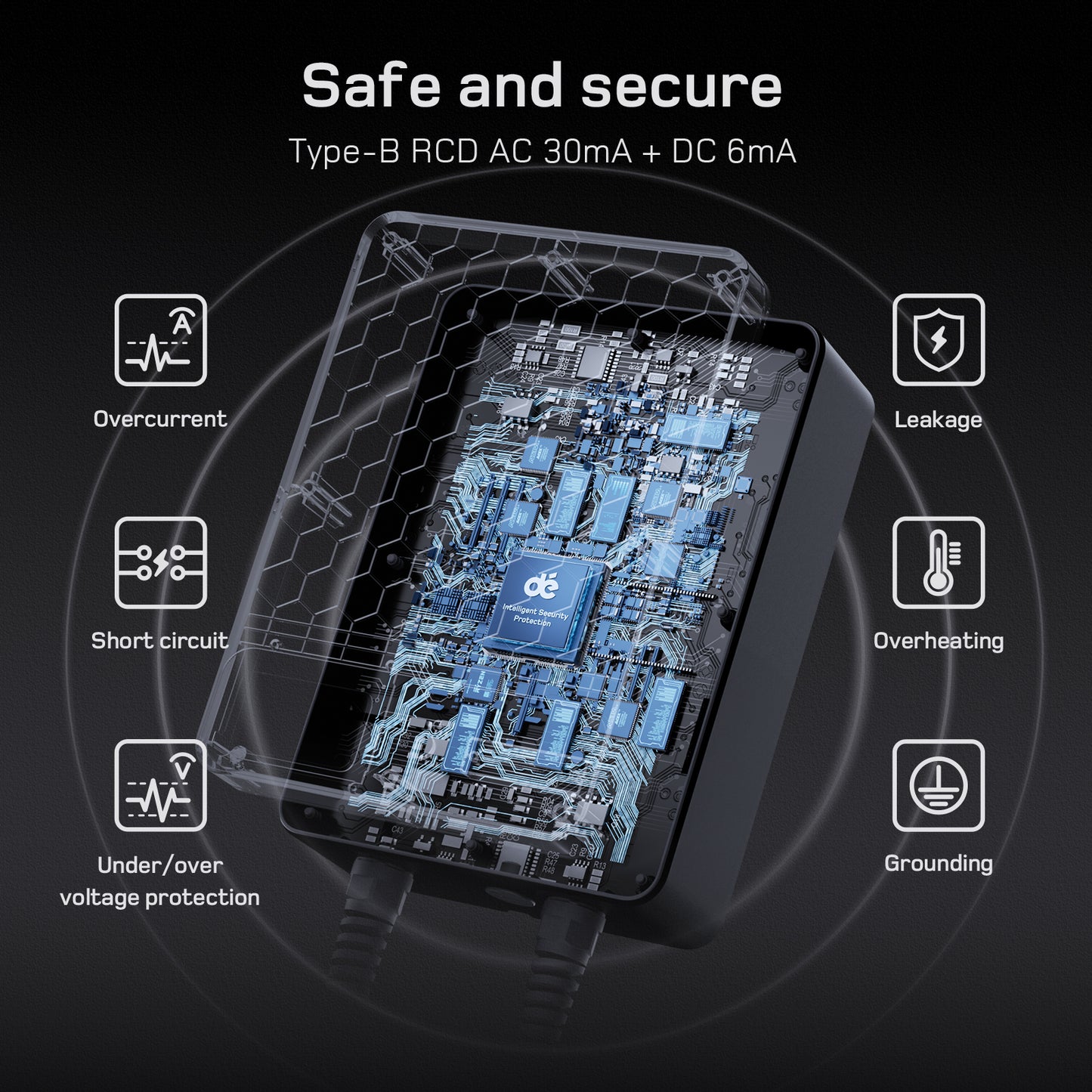

| Protection Settings | Type B 30mA AC + 6mA DC Technology and Dual Fuses Safety Lock Protection against leakage, overcurrent, overvoltage/undervoltage, ground fault, thermal protection, and short circuit, waterproof and dustproof. |
| Waterproof Grade | IP54 (Wallbox) IP55 (Type 2 Plug) |
| Warranty | 3 Years |
| Voltage | 400V AC |
| Charging Method | Single-phase |
| Ampere and Status Display | Readable via LED Screen |
| Charging Settings | Control via mobile devices via Wi-Fi Control via the charging station button Control via the car |
| Installation Location | Indoors and Outdoors |
| Size | Package size: 43*32*22 cm Wallbox size: 29.7*21.4*10.5 cm |
| Weight | 5m: 5.28 kg 7m: 6.01 kg |
