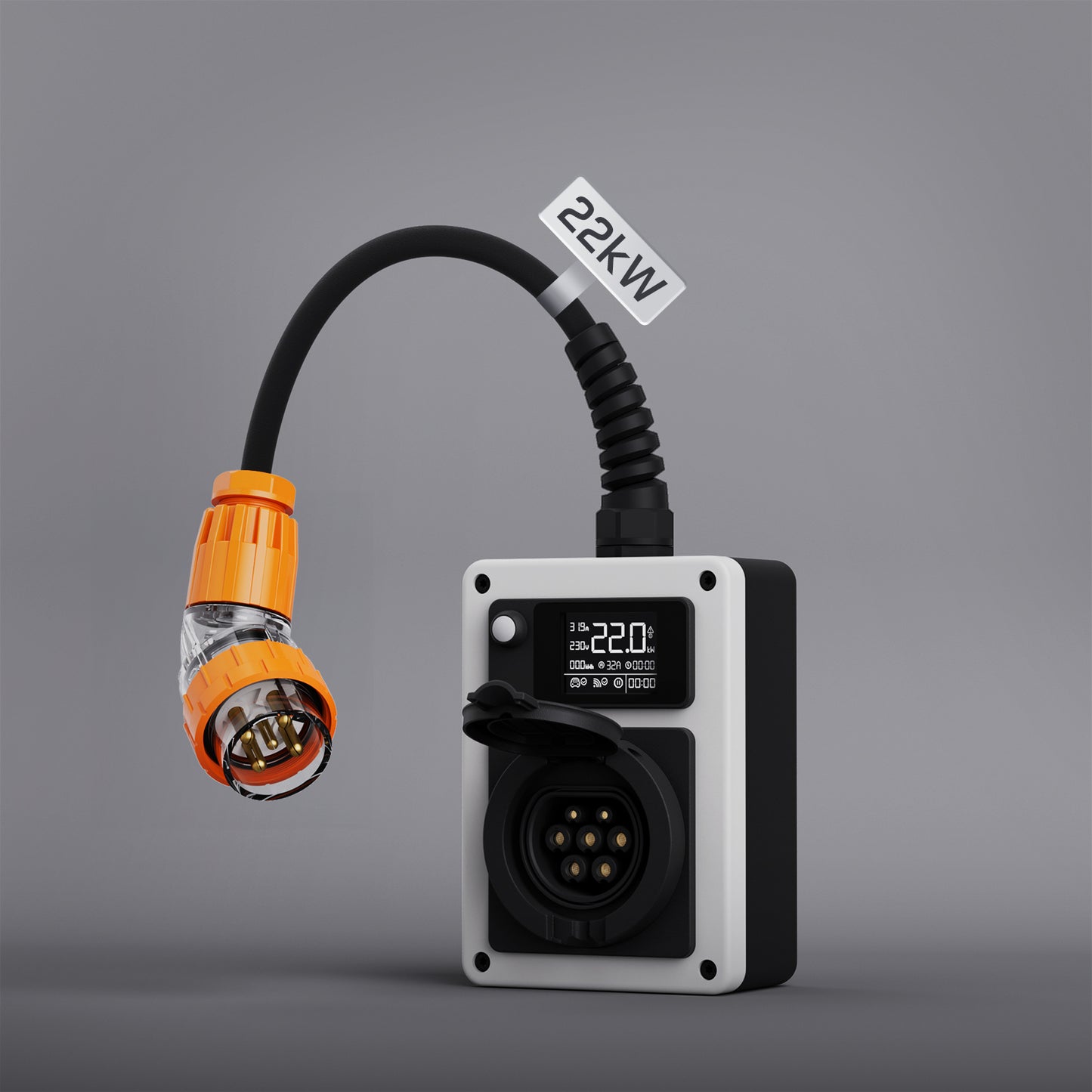

dé EV Charger Wallbox 22kW

dé EV Charger Wallbox 22kW is a smart wallbox that can be connected via a wireless local network. You can check and adjust the charging status at any time via the APP. It can be hung on the wall for use or quickly removed and carried. No electrician is required for installation, and only a CEE socket is required for charging.

Wallbox Image

Multicolumn

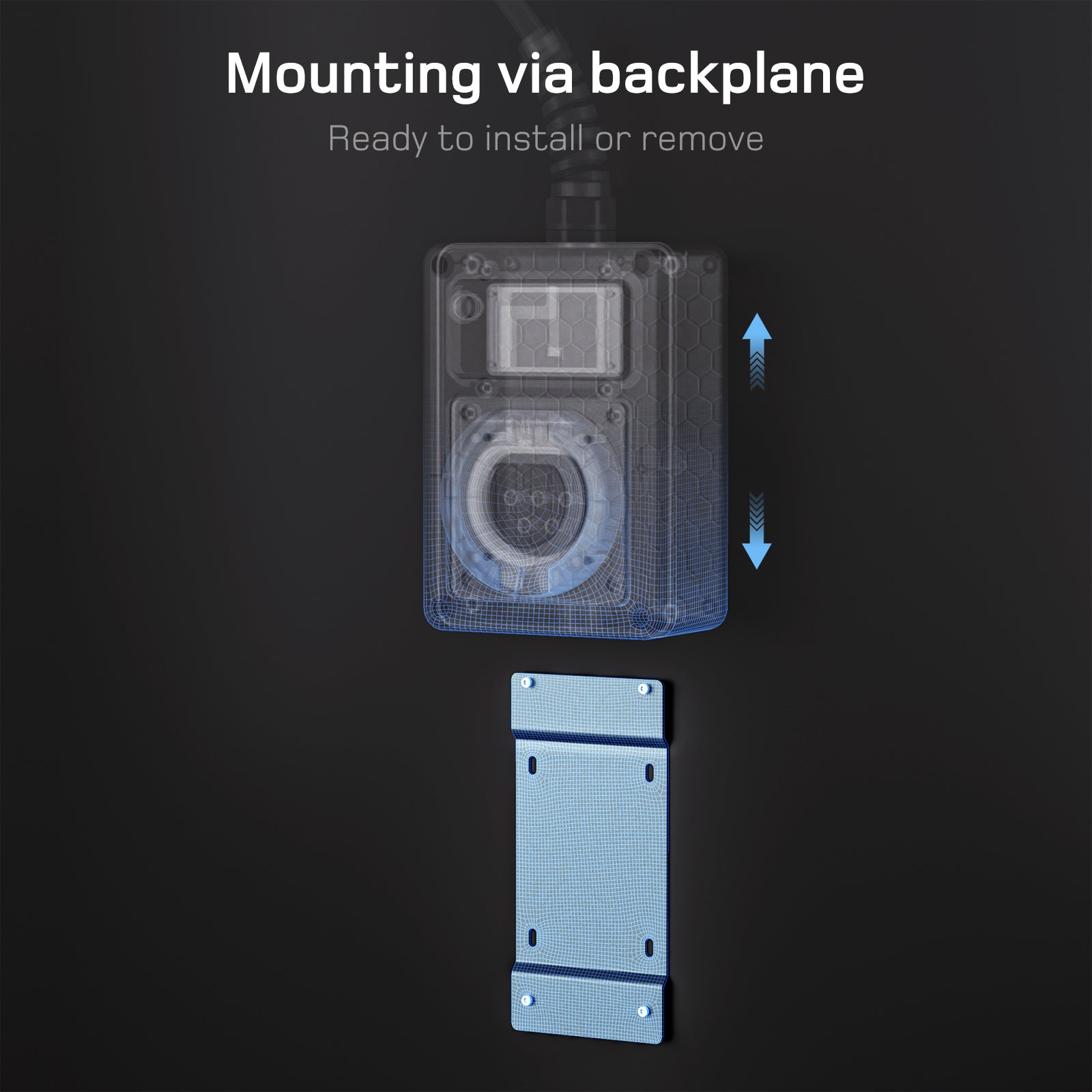

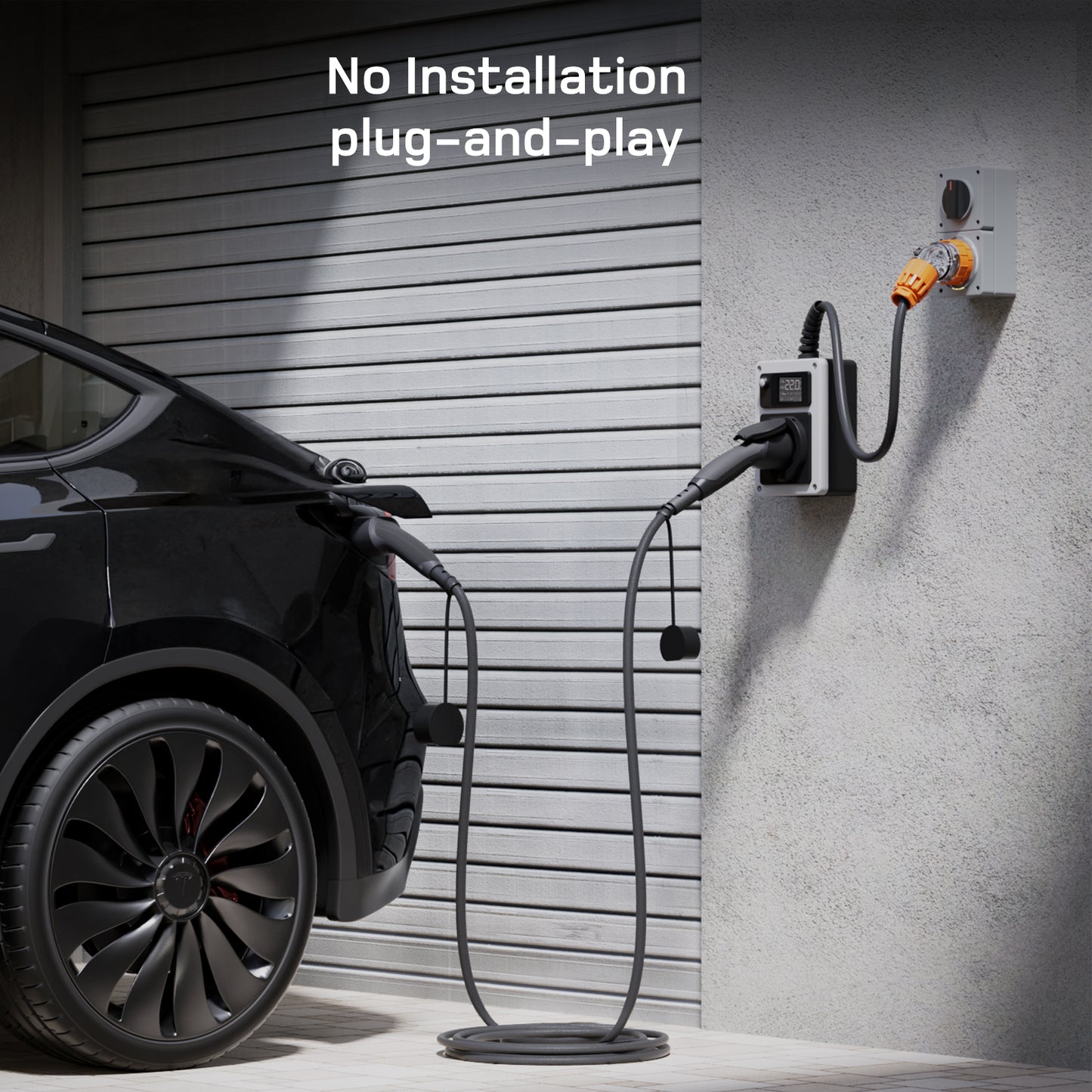

  • Easy to Install

    No electrician is needed, just use the back plate to fix it. Slide it up to take it out and turn it into a mobile charger at any time.

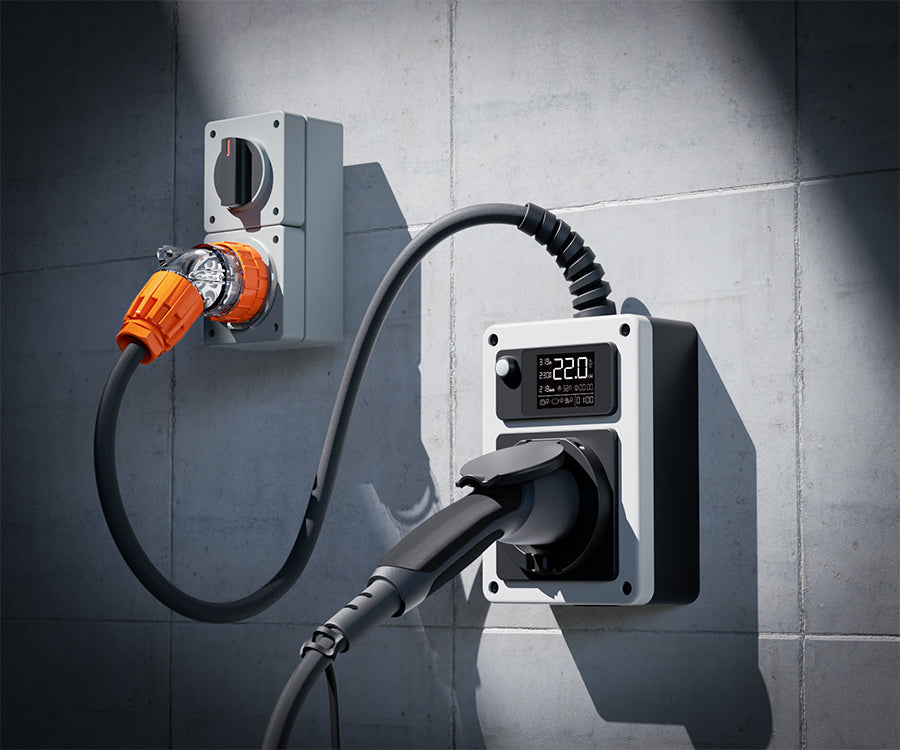

  • Plug and Play

    All you need for charging is a CEE socket and a Type 2 charging cable.

1 2

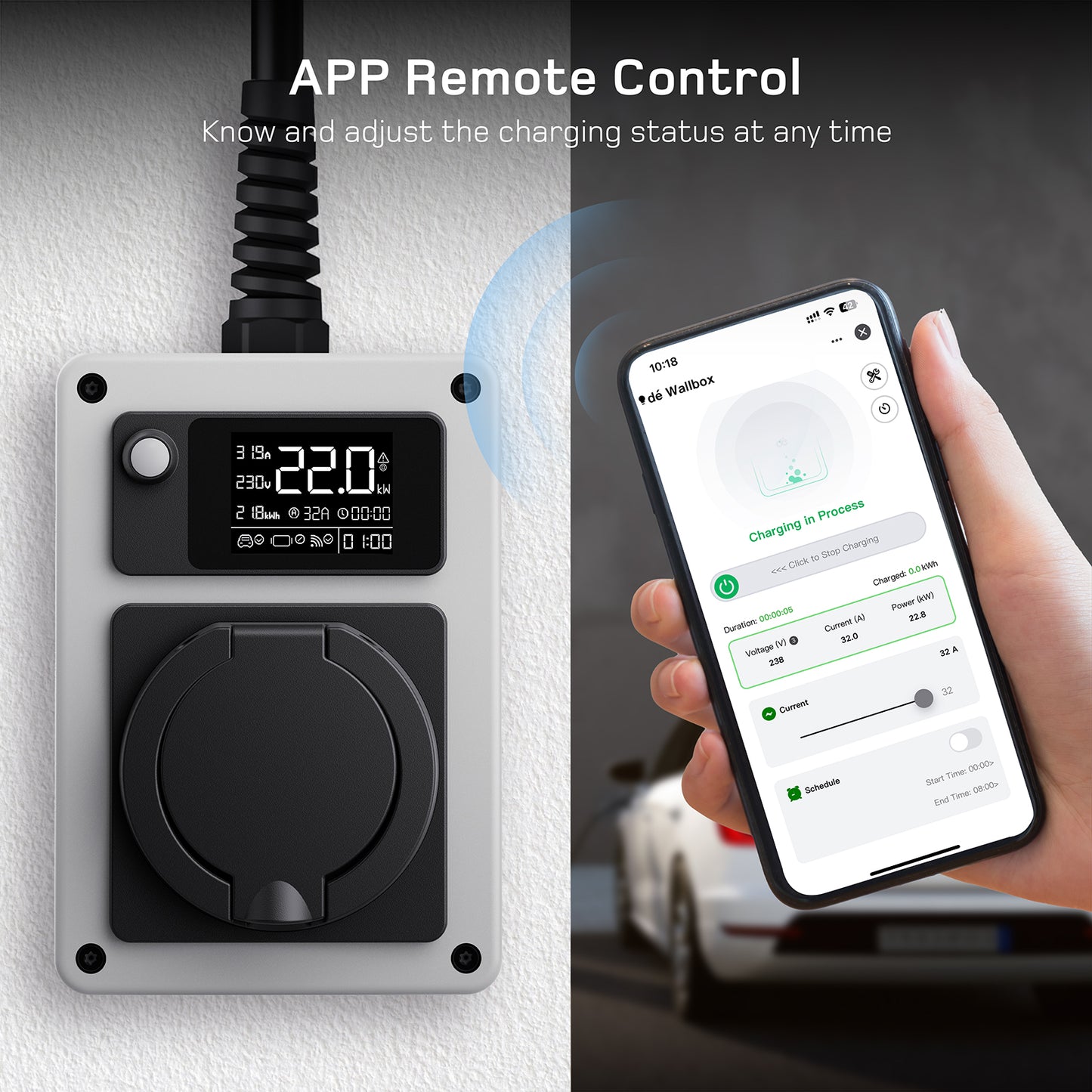

APP remote control

The new APP function enables smart charging via Wi-Fi. You can configure the charging process without leaving the room, start and stop the charging process at any time, or adjust the charging current and time.

Control by Wallbox

All charging settings can be made directly on the Wallbox at the touch of a button.

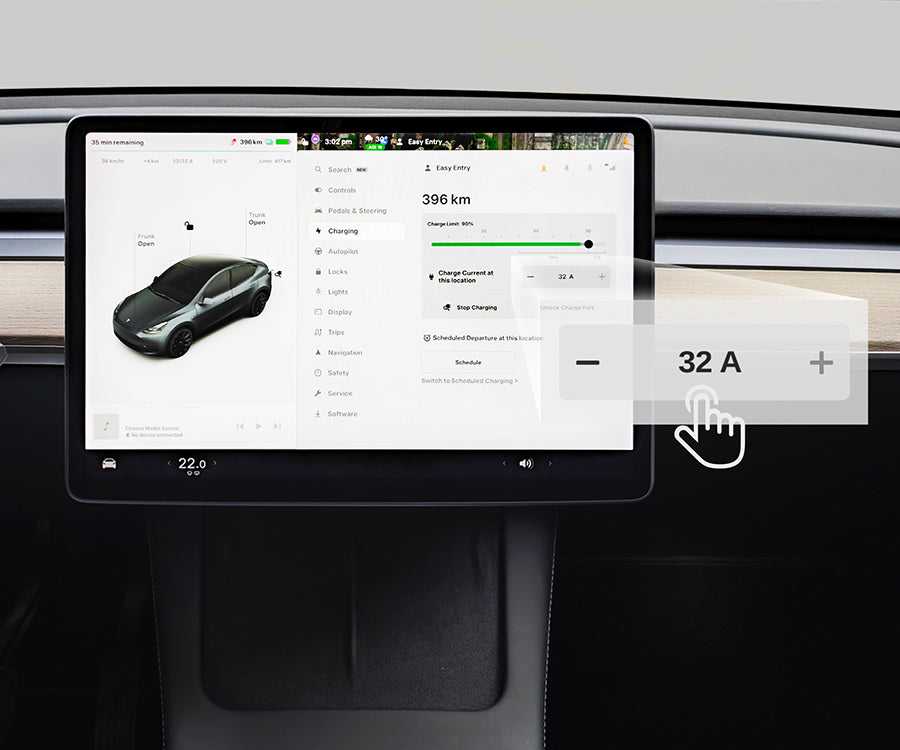

Control by car

Configure the charging process directly from the car, and operate and display the charging status through a more familiar and user-friendly on-board system.

Basculer les images et le texte
Image 1 Image 2
Make sure your mobile device (cell phone, tablet, etc.) is connected to a secure 2.4 GHz network and that Bluetooth is enabled. Make sure the device is within Wi-Fi range.
After downloading the app to register and add the device, connect the device and connect to Wi-Fi.
Press once to set the current;
Press twice to set Wi-Fi;
Press and hold in standby mode to set the delay time;
Press and hold in charging mode to stop charging;
Card induction for 10s activates RFID.
Image 1

Make sure your mobile device (cell phone, tablet, etc.) is connected to a secure 2.4 GHz network and that Bluetooth is enabled. Make sure the device is within Wi-Fi range.
After downloading the app to register and add the device, connect the device and connect to Wi-Fi.

Image 2

Press once to set the current;
Press twice to set Wi-Fi;
Press and hold in standby mode to set the delay time;
Press and hold in charging mode to stop charging;
Card induction for 10s activates RFID.

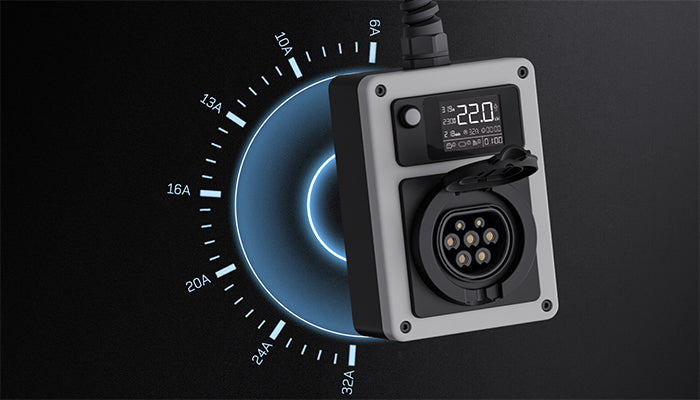

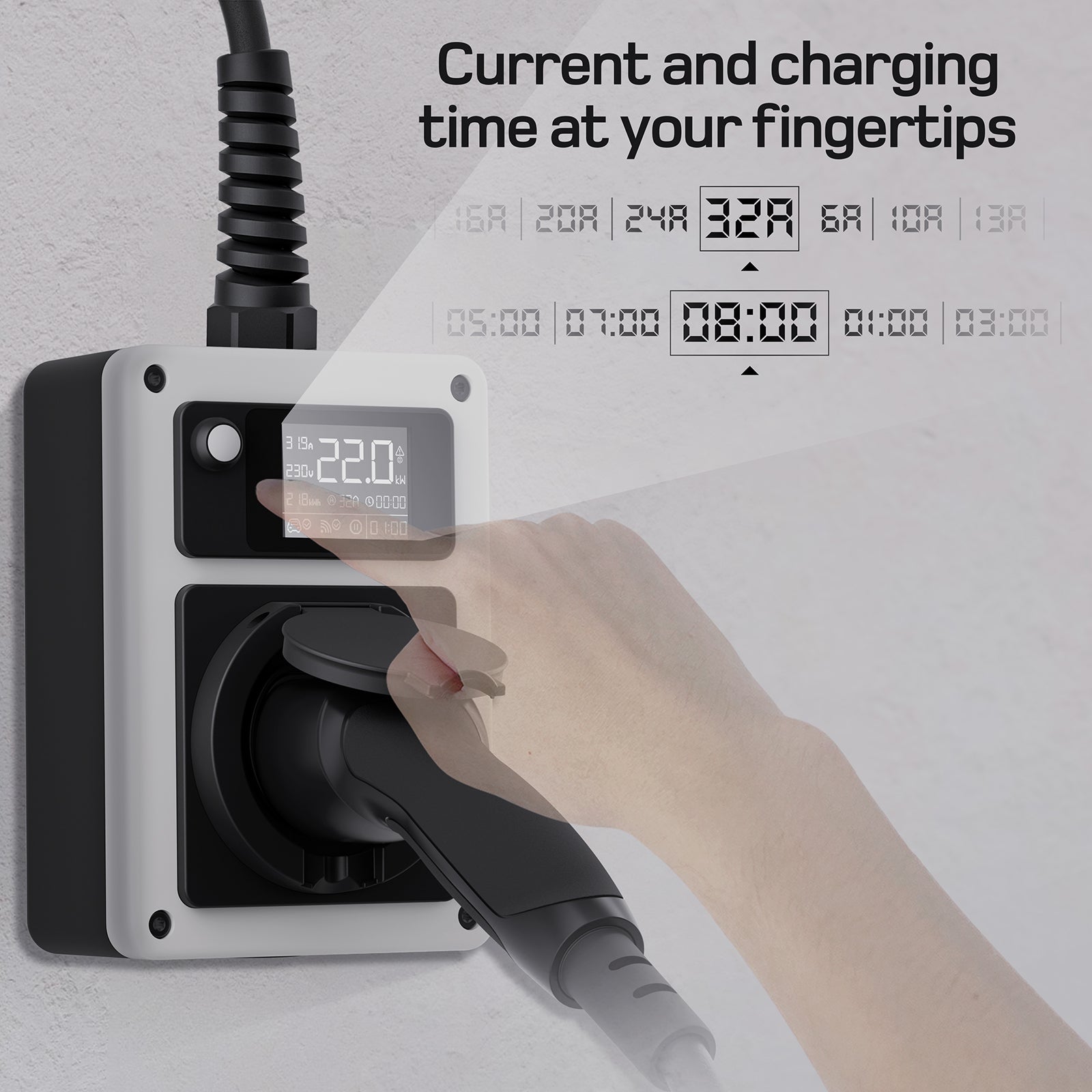

Free control of loading speed and time

  • 6A-32A Adjustable

    Adjustable current between 6A/10A/13A/16A/20A/24A/32A to meet different charging needs and environments.

  • 0.5h-8h timing function

    Automatic start and stop of the charging process, avoiding peak hours

1 2
Slide 1

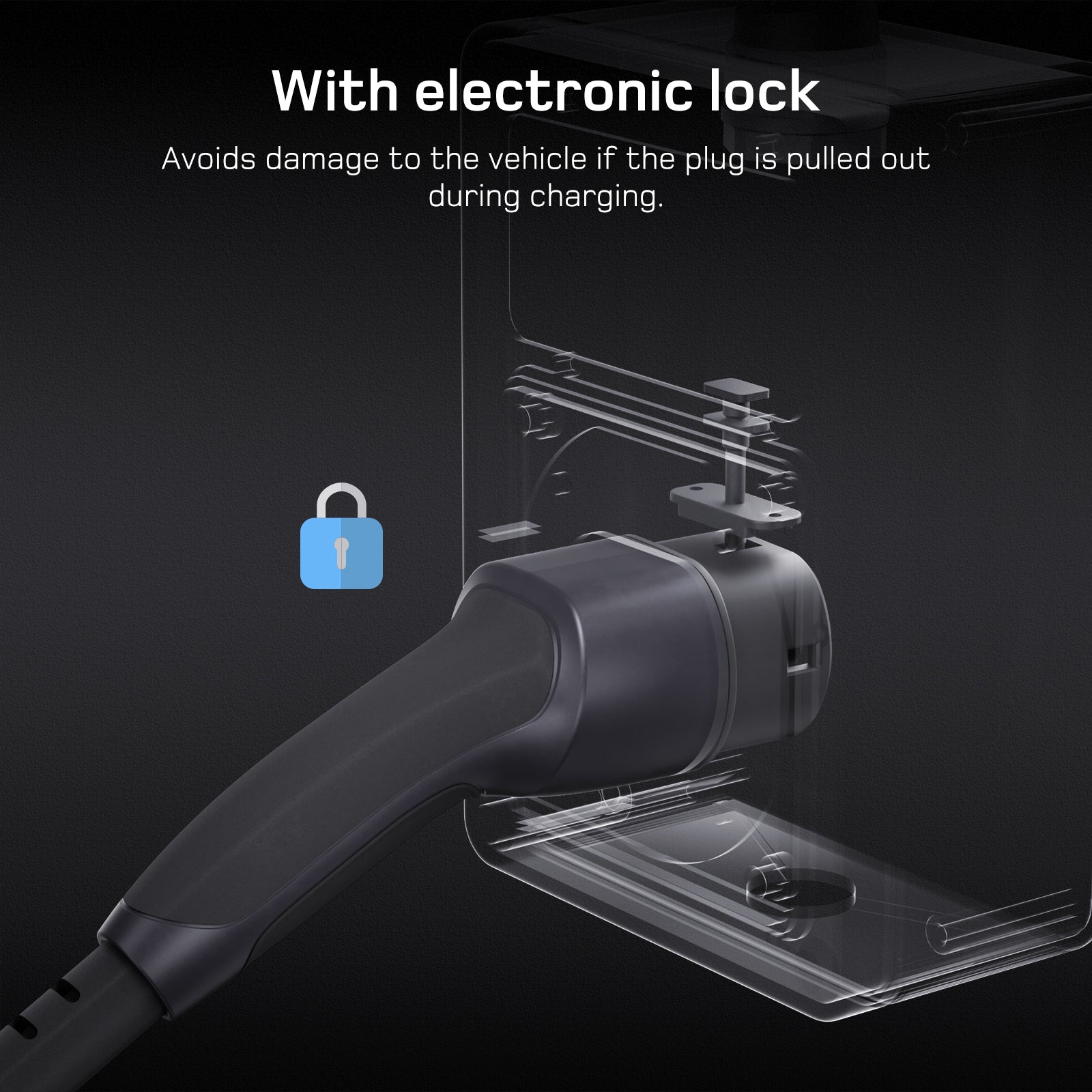

Safety lock

Avoid unplugging the plug while charging to prevent interruption of charging or damage to the vehicle due to accidental disconnection.

Slide 2

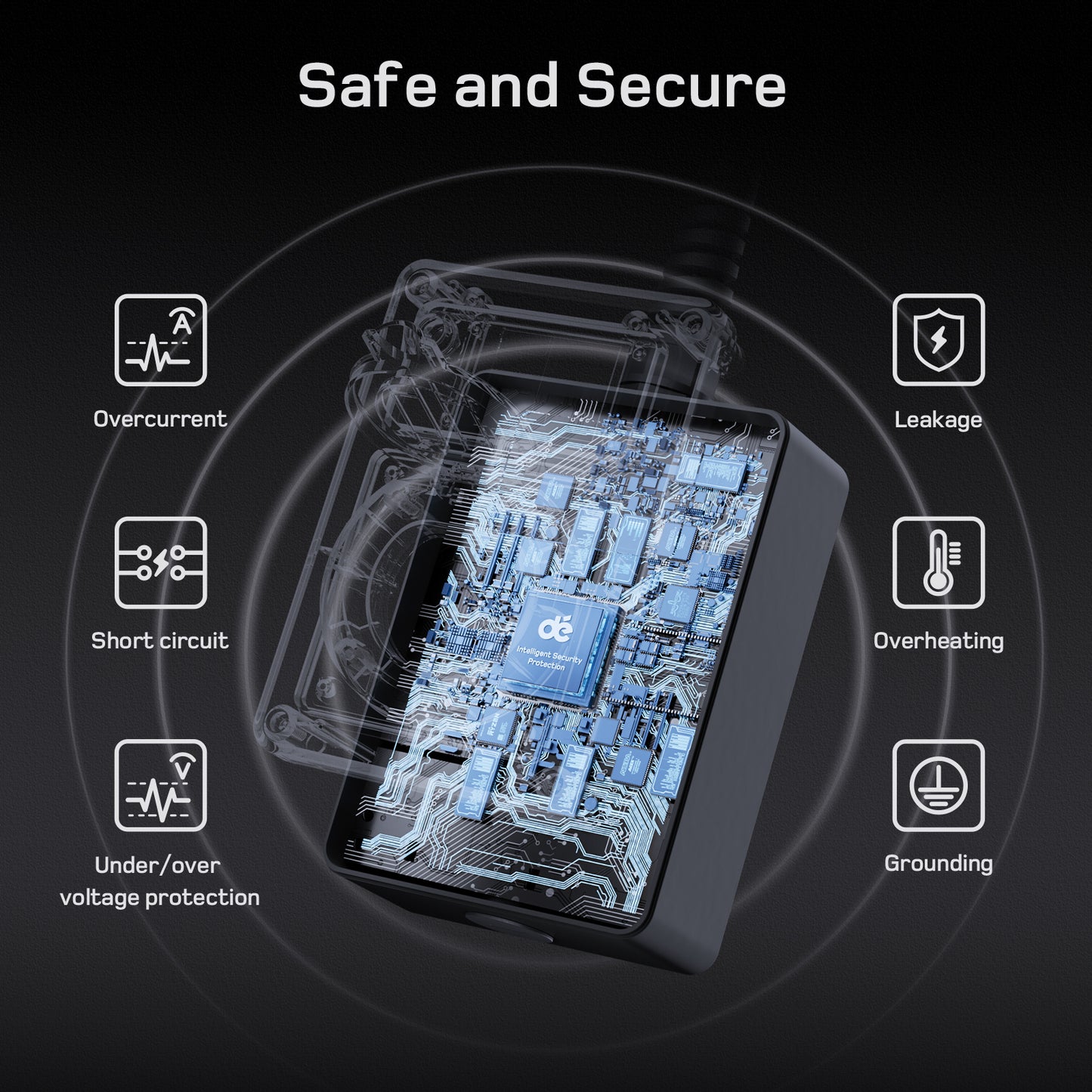

Comprehensive protection for your safety

Technology Type B 30mA AC + DC 6mA and double fuse.
Our chargers offer protection against overcurrent, under/overvoltage, leakage, overtemperature, ground fault and short-circuit.

Slide 3

Waterproof and dustproof

Waterproof, dustproof, heat- and cold-resistant.
Reliable, safe and durable in rain, heat and cold.

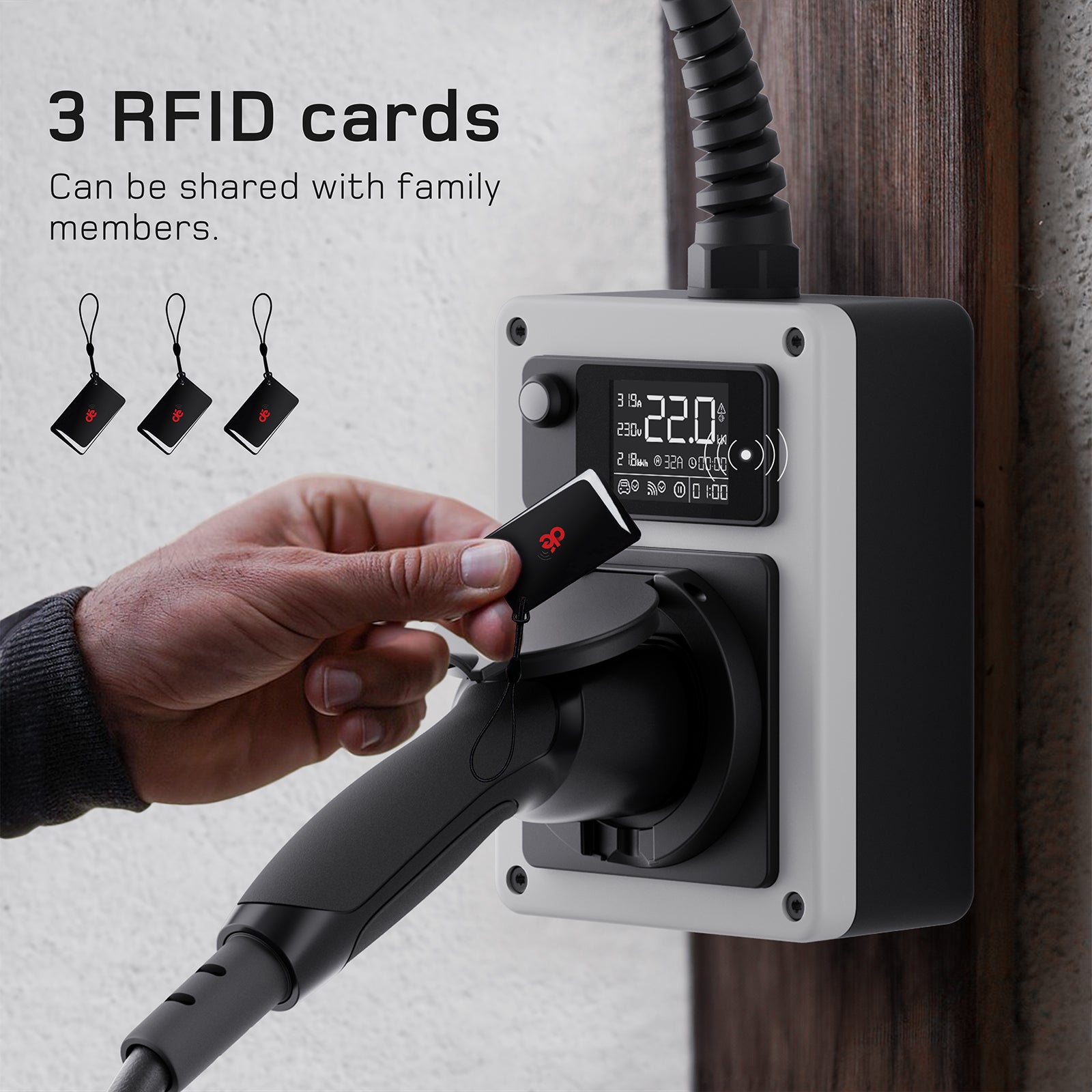

Family-friendly packaging

Equipped with 3 RFID cards, it enables personalized access and protection for multiple users. Can be shared with family members or as a daily backup.

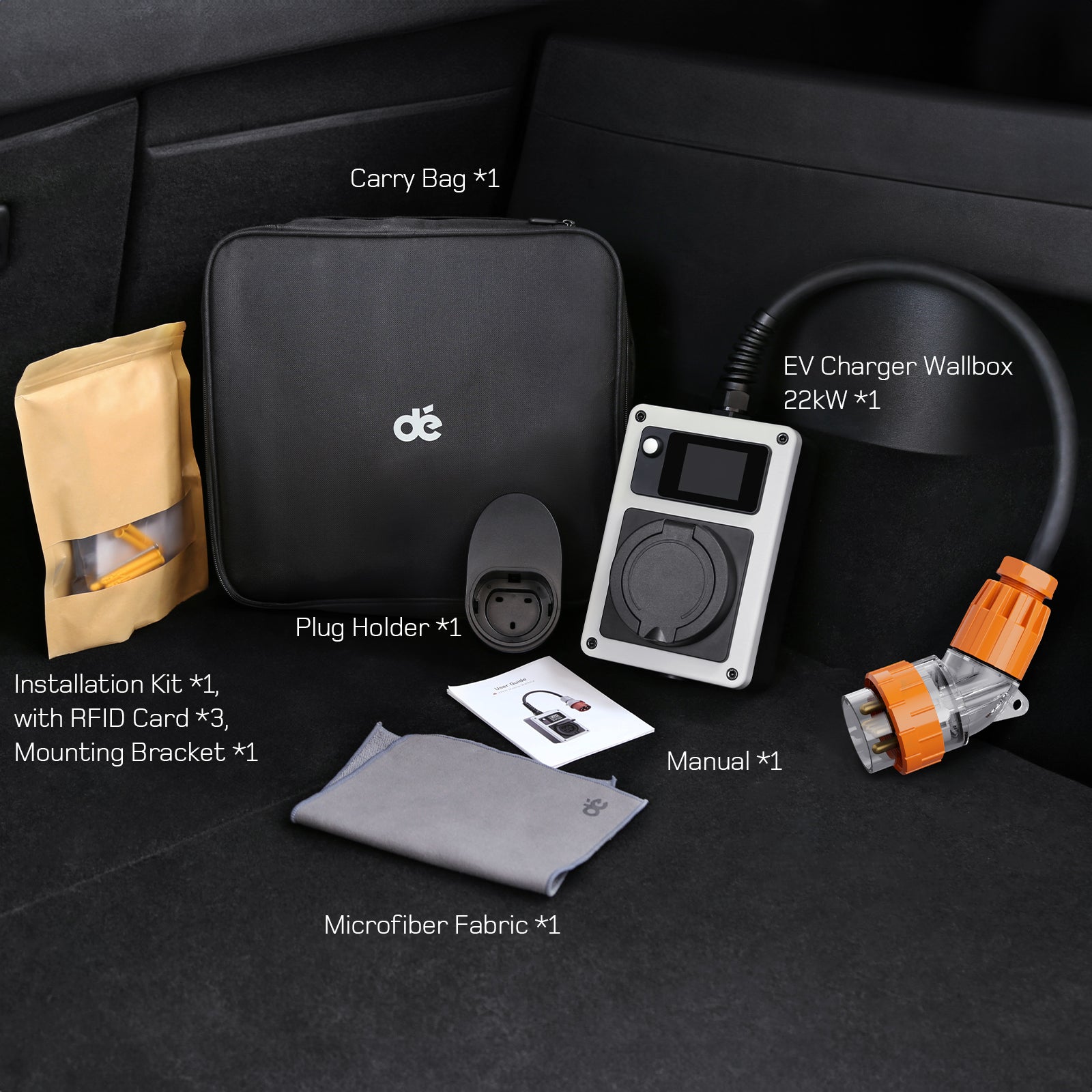

In the Box

  • Portable Wallbox 22kW * 1
  • Carry Case * 1
  • Installation Kit* 1, including back plate and screws
  • RFID cards * 3
  • Plug holder * 1
  • Microfiber Cloth * 1
  • Manuel * 1
Wallbox Image


Specification

Parameter Details
Maximum Charging Power 22 kW (32 A 3-phase)
Charging status Single-phase 16A charging power up to 3.5kW
Single-phase 32A charging power up to 7kW
Three-phase 16A charging power up to 11kW
Three-phase 32A charging power up to 22kW
Current range 6A/10A/13A/16A/20A/24A/32A
Plug Power connection: CEE Plug (3-phase)
Vehicle connection: Type 2
Operating Temperature -25℃ to +50℃
Time Range 0.5h-8h
Protection Settings Type B 30mA AC + 6mA DC Technology and Dual Fuses
Safety Lock
Protection against leakage, overcurrent, overvoltage/undervoltage, ground fault, thermal protection, and short circuit, waterproof and dustproof.
Waterproof Grade IP65 (Wallbox)
IP44 (CEE Plug)
Warranty 3 Years
Voltage 400V AC
Charging Method Single-phase or Three-phase
Ampere and Status Display Readable via LED Screen
Charging Settings Control via mobile devices via Wi-Fi
Control via the charging station button
Control via the car
Installation Location Indoors and Outdoors
Size Package size: 36*33*14 cm
Wallbox size: 25.6*14.9*9.6 cm
Weight 3.08 kg
